MIUI HTC Desire Z problems
Read last note for quick resolution.
This is not very networking related blog. I installed custom ROM - MIUI czech - slovak version on my HTC Desire Z. You can search for official walkthrough.
After a week it was restarting continuously. Right after start. I tried remove sd card and also sim card. It was weird because it works only with both unplugged.
So I searched for something and found that this could be sd card related problem. I went to recovery mode - Turn off phone. Hold Power + Volume DOWN. FACTORY DEFAULT (Volume down, volume down middle button under your screen to go to clockworkmode). And than I tried factory reset, wipe data, wipe da..., wipe cache. And so on. Nothing helps. Maybe 10 restarts :-D.
What did NOT help?: In clockwork mode, go to advanced (scroll/swipe middle button and press it) and format sd card. I did 4gigs and 0 swap. And after restart, card was mounted and phone works. But it has only 4 G memory sd card, I restarted again to clockworkmod, mount usb cable. Format via windows to fat32 to 8gb. There are methods to format it as ext3 or ext4. There are some limitations with fat32. One of them is file size limit 4gb. But its ok for me.
What DID HELP?
The only thing that works was returing to stock HTC. Download file from http://shipped-roms.com/index.php?category=android&model=Vision
I am from Slovakia so I used this one.
RUU_Vision_Gingerbread_S_HTC_WWE_2.42.405.3_Radio_12.56.60.25_26.10.04.03_M_release_224299_signed.exe
It is an easy walkthrough installation. Consider turning off antivirus during installation.
resoucrces:
http://forum.xda-developers.com/
http://shipped-roms.com
11/09/2012
4/24/2012
Mirroring from multiple physical interfaces to one interface
How to port mirror from multiple physical interfaces (on multiple devices) to a server with single ethernet interface?
(updated 25th March 2013)How to differentiate between port mirroring source? You can choose netflow or sflow for switches, but not all devices can handle as much as every packet - 1:1 packet rate. In my example, I have an SRX 210. Mirrored ports are trunk ports with native vlan configured. You may know it as hybrid port. Incoming packet with no vlan tag is assigned to particular vlan (vlan 10). Other packet must have particluar vlan tag (vlan 5, vlan 6) that is configured on switch port. I did not tested port mirror on Juniper EX switches but rather Avaya switches 5000 series. Juniper EX port mirror configuration is added.
Configuration of Juniper EX switch for this type of port
# show interfaces
ge-0/0/0 {
unit 0 {
family ethernet-switching {
port-mode trunk;
vlan {
members [ 5 6 ];
}
native-vlan-id 10;
}
}
}
unit 0 {
family ethernet-switching {
port-mode trunk;
vlan {
members [ 5 6 ];
}
native-vlan-id 10;
}
}
}
Port mirroring of TX and RX traffic on Juniper EX switch
# show ethernet-switching-optionsanalyzer myportmirror {
loss-priority high;
input {
ingress {
interface ge-0/0/20.0;
}
egress {
interface ge-0/0/20.0;
}
}
output {
interface {
ge-0/0/0.0;
}
}
}
Avaya ERS 5600 with firmware 6.2.x
port-mirroring mode Xrx monitor-port 1 mirror-port-X 2vlan create 5-6,10 type port 1
vlan configcontrol flexible
vlan members 1 NONE
vlan members 5-6,10 2
vlan ports 2 pvid 10
vlan configcontrol strict
Scenario
We want to mirror traffic from two devices, for example switches, but have server with single interface for pcap.1. Turn on port mirroring on two devices.
2. Connect SRX 210 port ge-0/0/1 to server and ports from that two devices devices to port fe-0/0/4 and fe-0/0/5.
3. Configure 802.1ad (QinQ) on SRX so ge-0/0/1 trunk port is facing a backbone and fe-0/0/4, fe-0/0/5 is facing CE. Each port connected to switch has its own S-vlan. All tagged and untagged (C-vlan) packets will now have additional L2 header (S-vlan).

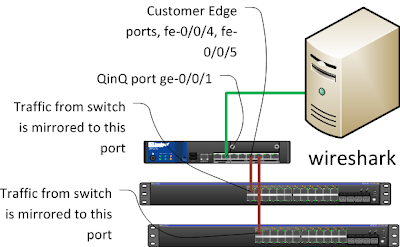

Diagram
SRX 210 Configuration
interfaces {
ge-0/0/1 {
description "port mirror";
unit 0 {
family ethernet-switching {
port-mode trunk;
vlan {
members [ port1 port2 ];
}
}
}
}
description "port mirror";
unit 0 {
family ethernet-switching {
port-mode trunk;
vlan {
members [ port1 port2 ];
}
}
}
}
fe-0/0/4 {
description "Mirror 1";
unit 0 {
family ethernet-switching {
port-mode access;
vlan {
members port1;
}
}
}
}
fe-0/0/5 {
description "Mirror 2";
unit 0 {
family ethernet-switching {
port-mode access;
vlan {
members port2;
}
}
}
}
description "Mirror 1";
unit 0 {
family ethernet-switching {
port-mode access;
vlan {
members port1;
}
}
}
}
fe-0/0/5 {
description "Mirror 2";
unit 0 {
family ethernet-switching {
port-mode access;
vlan {
members port2;
}
}
}
}
}
# show vlans
port1 {
vlan-id 1004;
dot1q-tunneling;
}
port2 {
vlan-id 1005;
dot1q-tunneling;
}
To conserve MAC address table on SRX 210, disable MAC address learning on port, or vlans
ethernet-switching-options {
interfaces {
ge-0/0/1.0 {
no-mac-learning;
}
fe-0/0/4.0 {
no-mac-learning;
}
fe-0/0/5.0 {
no-mac-learning;
}
}
}
interfaces {
ge-0/0/1.0 {
no-mac-learning;
}
fe-0/0/4.0 {
no-mac-learning;
}
fe-0/0/5.0 {
no-mac-learning;
}
}
}
I don't see a possibility to create firewall filter that drops incoming packet on port configured with family ethernet-switching.
Observing results. PC with Wireshark is connected to port ge-0/0/1. Please notice text under pictures.
Packet from fe-0/0/4, tagged to vlan 1004, packet was received untagged on fe-0/0/4. |
Packet from fe-0/0/4, double tagged with additional vlan 1004, and original vlan 5. |
Packet from fe-0/0/4, double tagged with additional vlan 1004, and original vlan 6. Difference between this and previous picture is vlan 6. |
Mirrored port fe-0/0/5
Packet from fe-0/0/5, double tagged with additional vlan 1005, and original vlan 5. |
Packet from fe-0/0/4, double tagged with additional vlan 1004, and original vlan 5. |
Packet from fe-0/0/5, double tagged with additional vlan 1004, and original vlan 6. Difference between this and previous picture is vlan 6. |
Note: You can see packets tagged with S-vlan as configured. Each port has its own S-vlan.
Bear in mind that packets received on server could be in wrong order because of SRX internal processing.
Jozef Klacko
References
Application note: J Series and branch SRX series ethernet switching configuration guide (pdf)Avaya support documentation webpage: http://support.avaya.com/downloads/
Menovky:
802.1ad,
Avaya,
ERS5600,
EX,
Juniper,
packet capture,
port mirroring,
Q-in-Q,
qinq,
SRX,
wireshark
4/07/2012
Interface-range - IOS Vs Junos
To edit multiple interfaces at once. In config mode - IOS "(config)#", Junos "#"
showing configuration
use show or show interfaces interface-range myshutdown-ed
How the configuration is actually applied
Junos: Don't forget to commit.
This contribution is also listed in forums.juniper.net - IOS to Junos (I2J) Tips Contest
Interface range - IOS Vs Junos
Purpose | IOS | Junos |
go to multiple interfaces configuration (define range) | interface range fastethernet0/1 – 9 | set interfaces interface-range myshutdown-ed member ge-0/0/0 set interfaces interface-range myshutdown-ed member ge-0/0/1 ... or set interfaces interface-range myshutdown-ed member-range ge-0/0/0 to ge-0/0/9 ... or set interfaces interface-range myshutdown-ed member ge-0/0/[0-9] |
apply some (e.g . shutdown) command to interface range | shutdown | set interfaces interface-range myshutdown-ed disable |
showing configuration
use show or show interfaces interface-range myshutdown-ed
interfaces { interface-range myshutdown-ed { member "ge-0/0/0"; member "ge-0/0/1"; ... disable; } ... or interfaces { interface-range myshutdown-ed { member-range ge-0/0/0 to ge-0/0/9; disable; } ... or interfaces { interface-range myshutdown-ed { member "ge-0/0/[0-9]"; disable; }
How the configuration is actually applied
show interfaces | display inheritance | except # ge-0/0/0 { disable; } ge-0/0/1 { disable; } ... ge-0/0/9 { disable; } or you can see from what is configuration applied (e.g. from interface-range or even from apply-groups show interfaces | display inheritance ge-0/0/0 { ## ## 'disable' was expanded from interface-range 'shutdown-ed' ## disable; } ...
Junos: Don't forget to commit.
This contribution is also listed in forums.juniper.net - IOS to Junos (I2J) Tips Contest
Interface range - IOS Vs Junos
Menovky:
configuration,
EX,
interface-range,
interfaces,
IOS,
Juniper,
Junos,
switch
Cisco Flex Links vs. Juniper Redundant Trunk Group (RTG)
Hi,
Flex Links are much same as RTG (Redundant Trunk Group). It is mostly used when you want to avoid using Spanning Tree and on access switches connecting to two aggregation switches.
See a picture on page http://www.juniper.net/techpubs/en_US/junos12.1/topics/concept/cfm-redundant-trunk-groups-understanding.html
Requirements:
Go to configuration mode
cisco >configure terminal "Switch(conf)#
Juniper >configure "user@switch#"
This contribution is also listed in forums.juniper.net - IOS to Junos (I2J) Tips Contest
Flex Links vs RTG
Flex Links are much same as RTG (Redundant Trunk Group). It is mostly used when you want to avoid using Spanning Tree and on access switches connecting to two aggregation switches.
See a picture on page http://www.juniper.net/techpubs/en_US/junos12.1/topics/concept/cfm-redundant-trunk-groups-understanding.html
Requirements:
- Juniper EX series switch with Junos 10.4 or later
- Ports configured with family ethernet-switching
Go to configuration mode
cisco >configure terminal "Switch(conf)#
Juniper >configure "user@switch#"
Purpose | IOS | Junos |
disable spanning tree on port | Spanning tree is turned off automatically on flex links | user@host# set protocols rstp interfaces ge-0/0/5 disable user@host# set protocols rstp interfaces ge-0/0/6 disable |
Set Flex Links / RTG | Switch(conf)# interface gigabitethernet0/1 Switch(conf-if)# switchport backup interface gigabitethernet0/2 |
user@host# set ethernet-switching-options redundant-trunk-group group rtg1 interface ge-0/0/5.0 primary user@host# set ethernet-switching-options redundant-trunk-group group rtg1 interface ge-0/0/6.0 |
Configure preemption (optional) | "preemption modes: forced, bandwidth, off. For preempion to work, set forced or bandwidth."
Switch(conf-if)# switchport backup interface gigabitethernet0/2 preemption mode [forced | bandwidth ] Switch(conf-if)# switchport backup interface gigabitethernet0/2 preemption delay 60 |
"Change the length of time (from the default 120 seconds) that a re-enabled primary link waits to take over for an active secondary link." user@host# set redundant-trunk-group group tg1 preempt-cutover-timer 60 |
Show Flex Link/RTG status | Switch(conf-if)# exit Switch(conf)# exit Switch# show interface switchport backup Switch# show interface switchport backup detail |
user@host# run show redundant-trunk-group |
Save configuration / apply and save configuration | Switch# copy running-config startup-config | user@host# commit |
This contribution is also listed in forums.juniper.net - IOS to Junos (I2J) Tips Contest
Flex Links vs RTG
Menovky:
Cisco,
EX,
Flex Links,
IOS,
Juniper,
Junos,
Redundand Trunk Group,
RTG
